| Brand Name : | Zhengde Metal |
| Price : | negotiable |
| Payment Terms : | Western Union, MoneyGram, T/T |
| MOQ : | 3tons |
| Supply Ability : | 35000 Tons/Month |

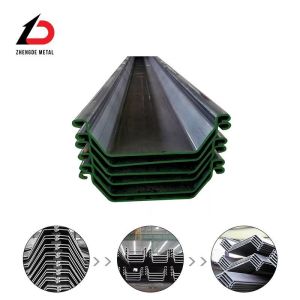

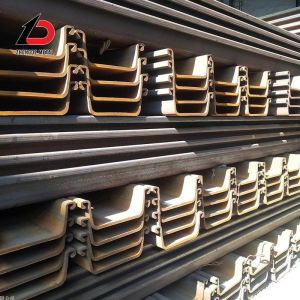

There are two types of cold-formed steel sheet piles: non-snap-type
cold-formed steel sheet piles (also known as channel plates) and
bite-type cold-formed steel sheet piles (divided into L-type,
S-type, U-type, and Z-type). Production process: use thinner plates
(commonly used thickness 8mm ~ 14mm) in the cold bending machine
for continuous rolling forming.
| Type | Width | Height | Thickness | Sectional area | Weight per pile | Weight per wall | Moment of Inertia | Modulus of section |
| mm | mm | mm | Cm2/m | Kg/m | Kg/ m2 | Cm4/m | Cm3/m | |
| ZDU7 | 750 | 320 | 5 | 71.3 | 42 | 56 | 10725 | 670 |
| ZDU8 | 750 | 320 | 6 | 86.7 | 51 | 68.1 | 13169 | 823 |
| ZDU9 | 750 | 320 | 7 | 101.4 | 59.7 | 79.6 | 15251 | 953 |
| ZDU10-450 | 450 | 360 | 8 | 148.6 | 52.5 | 116.7 | 18268 | 1015 |
| ZDU11-450 | 450 | 360 | 9 | 165.9 | 58.6 | 130.2 | 20375 | 1132 |
| ZDU12-450 | 450 | 360 | 10 | 182.9 | 64.7 | 143.8 | 22444 | 1247 |
| ZDU11-575 | 575 | 360 | 8 | 133.8 | 60.4 | 105.1 | 19685 | 1094 |
| ZDU12-575 | 575 | 360 | 9 | 149.5 | 67.5 | 117.4 | 21973 | 1221 |
| ZDU13-575 | 575 | 360 | 10 | 165 | 74.5 | 129.5 | 24224 | 1346 |
| ZDU11-600 | 600 | 360 | 8 | 131.4 | 61.9 | 103.2 | 19897 | 1105 |
| ZDU12-600 | 600 | 360 | 9 | 147.3 | 69.5 | 115.8 | 22213 | 1234 |
| ZDU13-600 | 600 | 360 | 10 | 162.4 | 76.5 | 127.5 | 24491 | 1361 |
| ZDU18- 600 | 600 | 350 | 12 | 220.3 | 103.8 | 172.9 | 32797 | 1874 |
| ZDU20- 600 | 600 | 350 | 13 | 238.5 | 112.3 | 187.2 | 35224 | 2013 |
| ZDU16 | 650 | 480 | 8 | 138.5 | 71.3 | 109.6 | 39864 | 1661 |
| ZDU 18 | 650 | 480 | 9 | 156.1 | 79.5 | 122.3 | 44521 | 1855 |
| ZDU20 | 650 | 540 | 8 | 153.7 | 78.1 | 120.2 | 56002 | 2074 |
| ZDU23 | 650 | 540 | 9 | 169.4 | 87.3 | 133 | 61084 | 2318 |
| ZDU26 | 650 | 540 | 10 | 187.4 | 96.2 | 146.9 | 69093 | 2559 |
| ZDU30-700 | 700 | 558 | 11 | 217.1 | 119.3 | 170.5 | 83139 | 2980 |
| For more technical parameters of steel sheet piles, please contact us for details | ||||||||










Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel
coils, cold-rolled steel coils, galvanized steel coils,
color-coated steel coils, section steel, steel pipes, steel wires,
metal mesh, stainless steel, aluminum, copper and other metal
products integrated large enterprises. Five production and sales
bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan
and Tai'an, with more than 100 production lines, 4 nationally
recognized laboratories, 2 technical engineering centers, and 5
enterprise technology centers. Products are exported to more than
50 countries and regions such as North America, South America,
Europe, Africa, Oceania, Middle East, and Southeast Asia.

|
